New Support for 2 Series MSO: Kickstart 2.9.0 Software Now AvailableÂ
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/general%20page%20images/rule-orange-150x6.jpg)
Analyzing Frequency Response with a 2 Series MSO Scope and AFG31000
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/general%20page%20images/rule-orange-150x6.jpg)
This video demonstrates how to analyze the frequency response of an inverting amplifier circuit using Keithley KickStart Software, a Keithley 2220-30-1 Dual-Channel Power Supply, a Tektronix AFG31251 Arbitrary Function Generator, and a Tektronix MSO24 Mixed Signal Oscilloscope.
Featured ProductsÂ
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/general%20page%20images/rule-orange-150x6.jpg)
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/mso22.jpg)

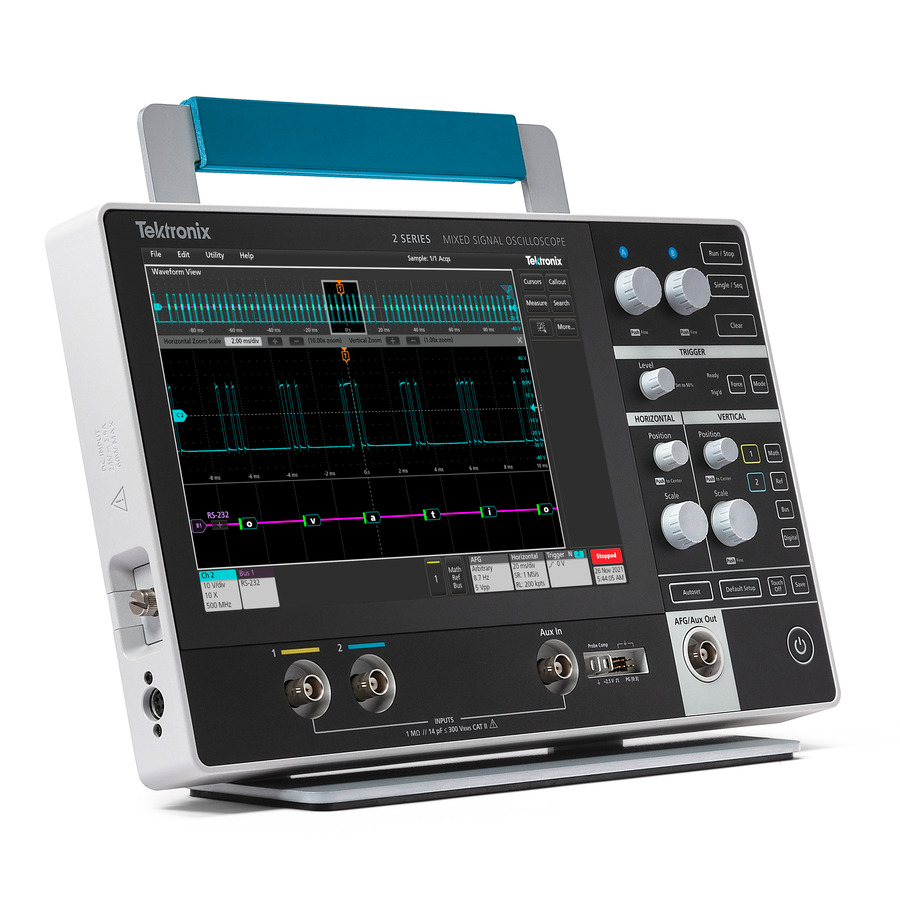

MSO22 (2-channel)
- 2 analog channels
- 70 MHz bandwidth (upgradeable)
- 2.5GS/s sample rate
- 10Mpts record length
- Power cord and AC/DC power brick
- 200 MHz 10x Probes 1 ea per channel
- 1-year Standard Warranty
MSO24 (4-channel)
- 4 analog channels
- 70 MHz bandwidth (upgradeable)
- 2.5GS/s sample rate
- 10Mpts record length
- Power cord and AC/DC power brick
- 200 MHz 10x Probes 1 ea per channel
- 1-year Standard Warranty
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/tektronix/kickstart%20picture.png)

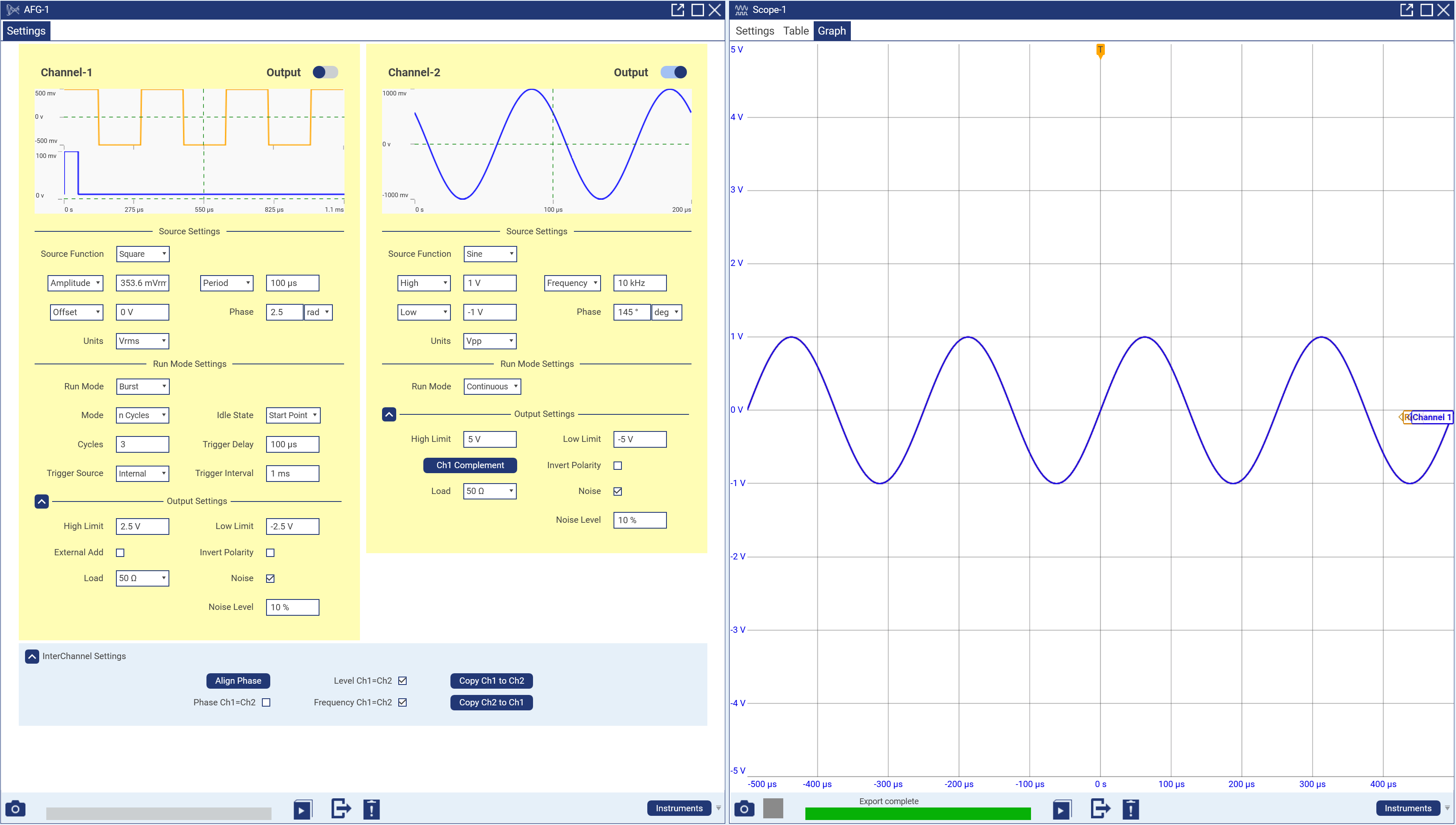

Kickstart Software
Drive innovation through faster test & measurement with KickStart Software. KickStart simplifies what you need to know about the instrument so that in just minutes you can take the instrument out of the box and get real data on your device. By plotting data immediately and offering quick statistical summaries of the data in the reading table, KickStart allows you to gather insights faster and make the decisions you need to move ...
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/tektronix/2230g-30-1.jpg)

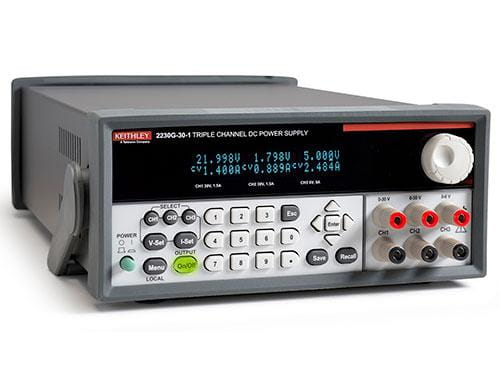

Keithley 2220/2230/2231 Series
Series 2220 and 2230 Multi-Channel Programmable DC Power Supplies are ideal for testing a wide range of devices, circuit boards, modules, and products that require multiple power sources cost-effectively. Series 2200 supplies provide two channels, each capable of outputting up to 30V and up to 1.5A. Series 2230 supplies include two 30V/1.5A channels plus a 6V channel with...
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/tektronix/afg31000.jpg)

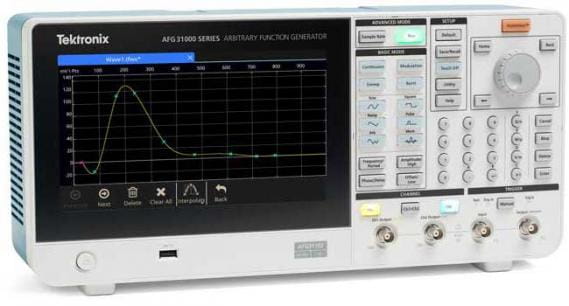

AFG31000 Arbitrary Function Generator
The AFG31251 is a high-performance AFG with built-in arbitrary waveform generation, real-time waveform monitoring, and the largest touchscreen on the market. Providing advanced waveform generation and programming capabilities, waveform verification, and a modern touch-screen interface, the new AFG31251 is sure to delight and simplify the job of every researcher and engineer...
