Project Bench for University Engineering Labs
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/general%20page%20images/rule-orange-150x6.jpg)
Engineering students in years three and four usually work on specific projects to give them a real world understanding of what life is like as an engineer in industry. These projects could include topics as diverse as Bio-Sensors, Robotics, The Internet of Things (IoT) or RF/Wireless devices and the fundamentals lab equipment isn’t equipped for this type of testing.
The project lab test equipment might need to capture signals at higher bandwidths, make measurements of analogue and mixed signal circuits, power management or measurements in both the time and frequency domain making sure the design doesn’t interfere with other items on the board.
The equipment here follows the same pattern as the fundamentals lab but may include oscilloscopes which can measure in both the time and frequency domain, decode and analyse serial buses and make power measurements. The signal generator needed may be a higher bandwidth and capable of making complex stimulus signals during test while the digital multimeter might need higher resolution for deeper insight. A source measure unit might be needed to characterize individual components, while an RF signal generator might be needed to provide an adjustable, repeatable RF signal.
Project Bench Overview
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/general%20page%20images/rule-orange-150x6.jpg)
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/project%20lab%20bench%20updated%20-%20jpeg.jpg)

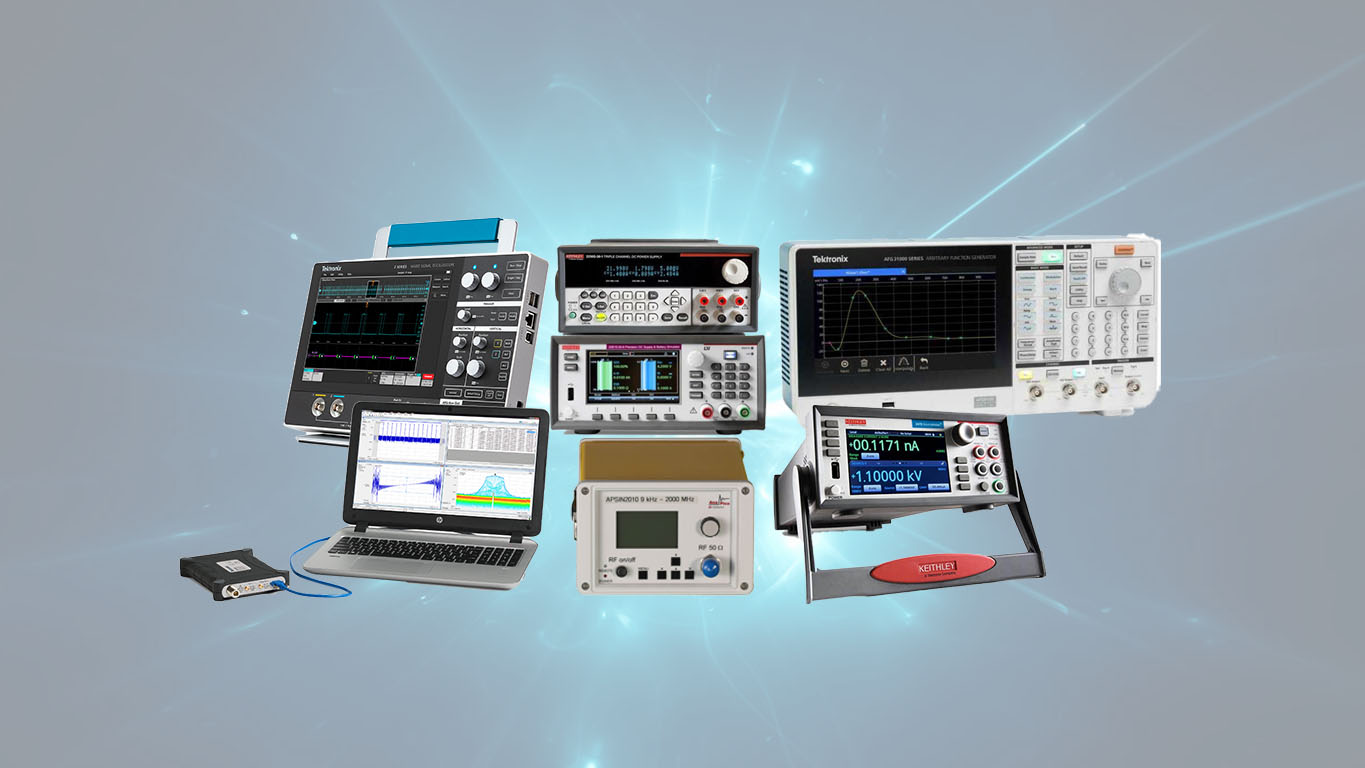

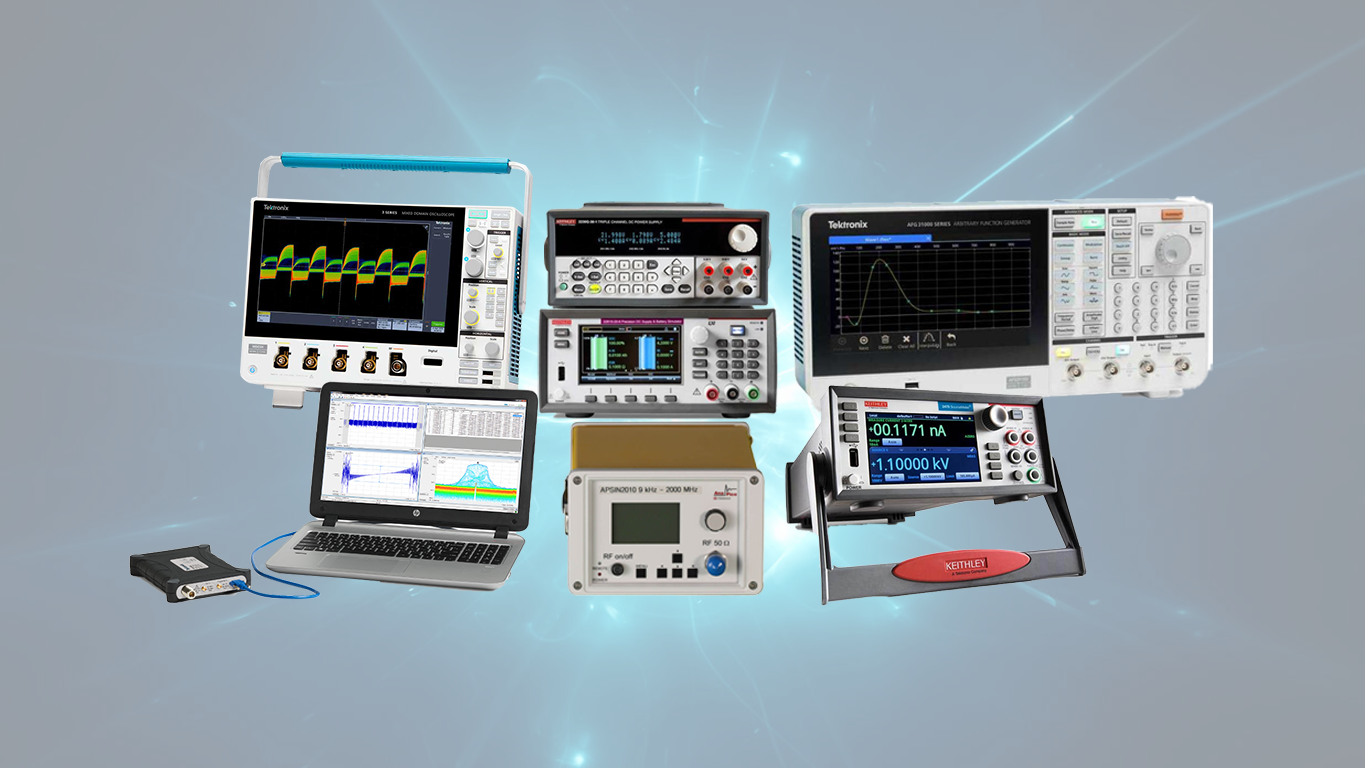

Tektronix Project Lab Bench
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/general%20page%20images/rule-orange-150x6.jpg)
Summary

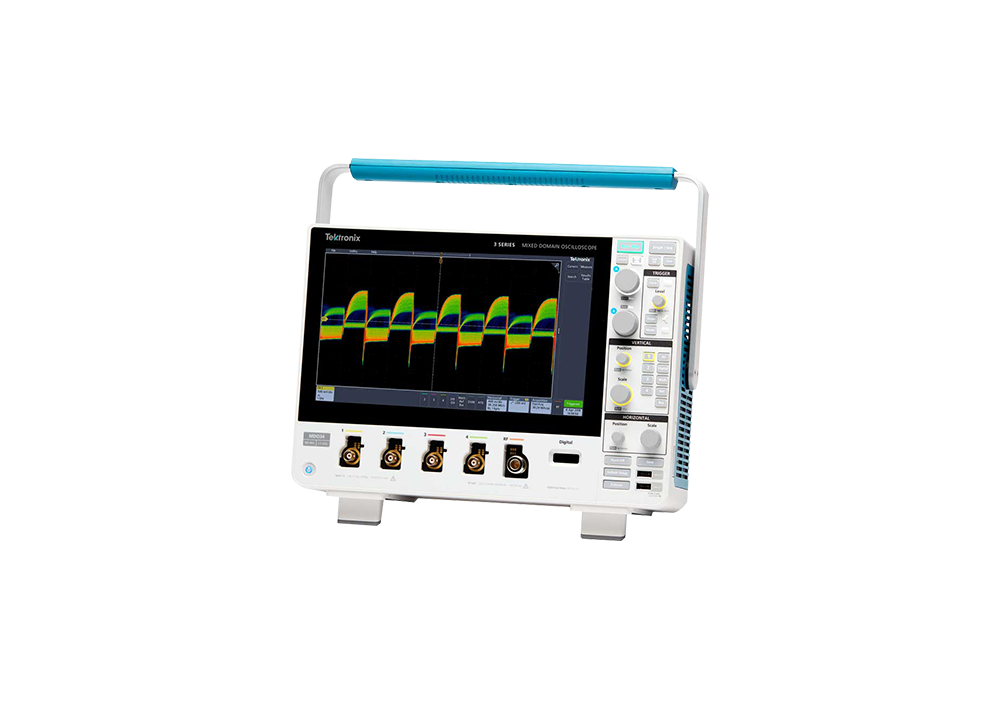

Tektronix MDO34 Mixed Domain Oscilloscope or Tektronix 2 Series MSO24
Tektronix AFG31102 Arbitrary Function Generator
Tektronix DMM6500 Digital Multimeter
Keithley 2231A-30-3 3 Channel Power Supply
Tektronix RSA306B USB Spectrum Analyser with Signal Vu Software
Anapico APSINX010 RF Signal Generator
Keithley 2450 Source Measure Unit
Keithley 2281S-20-6 Battery Simulator/DC Power Supply
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/tilte%20picture%20for%20projects%20lab%20%20-%20keysight%20version%20jpeg.jpg)

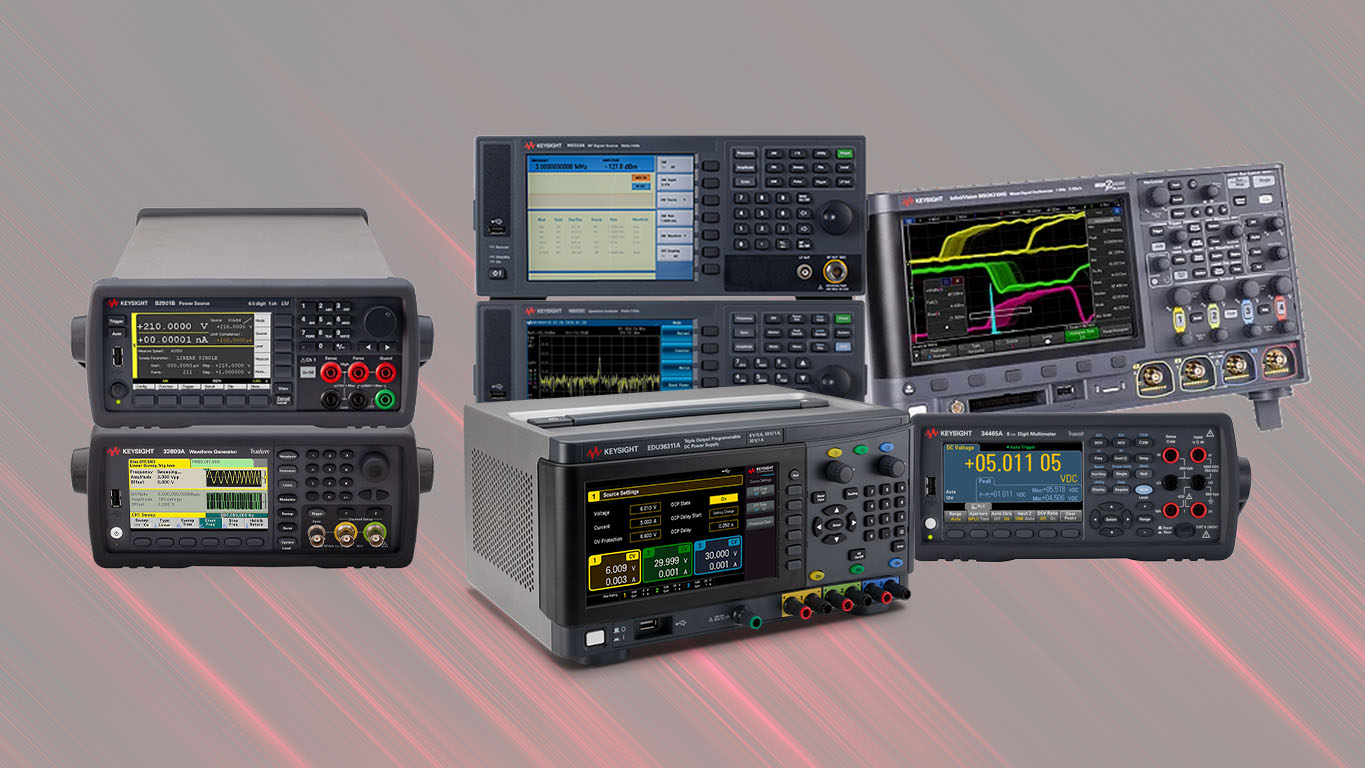

Keysight Project Lab Bench
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/general%20page%20images/rule-orange-150x6.jpg)
Summary
Keysight InfiniiVison 3000G X-Series Oscilloscope
Keysight 33622A Waveform Generator
Keysight EDU36311A DC Power Supply
Keysight 34465A Digital Multimeter
Keysight N9310A RF Signal Generator
Keysight N9322C Basic Spectrum Analyser
Keysight B2900 Series Source Measure Unit
Tektronix/Anapico Project Lab Bench
Manufacturer
Product
Description
Tektronix
2 Series MSO24 Mixed Signal Oscilloscope Â
70MHz Upgradeable to 500MHz, 4CH, 2.5GS/s, 10Mpts
Tektronix
AFG31102 Arbitrary Function Generator  Â
100 MHz frequency, 2 Analog Channels
Tektronix
DMM6500 Digital Multimeter  Â
1Msample/s, 16-bit Digitizer, up to 15 Measurement Functions
Kiethley
2231A-30-3 3 Channel Power Supply  Â
2 or 3 Outputs, 30V Maximum Voltage
Tektronix
RSA306B USB Spectrum Analyser with Signal Vu Software  Â
9 kHz - 6.2 GHz USB Spectrum Analyser, 40 MHz Real-Time Bandwidth
Anapico
APSINX010 RF Signal Generator  Â
Frequency Range: 9 kHz - 2, 4 or 6.1 GHz
Kiethley
2450 Source Measure Unit  Â
1A Max current, 200V Max Voltage, 1 Channel
Kiethley
2281S-20-6 Battery Simulator/DC Power Supply  Â
1 Output, 20 V Maximum Voltage
Project Bench Featured Products
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/general%20page%20images/rule-orange-150x6.jpg)
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/tektronix/2%20series%20mso%20project%20bench.png)

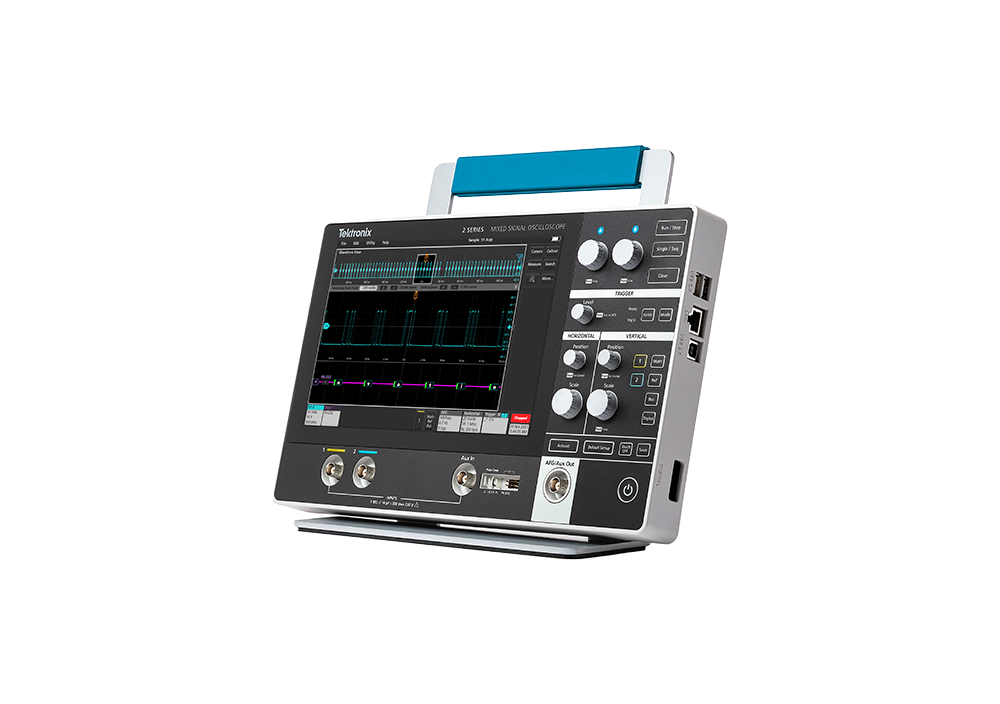

Tektronix 2 Series MSO24 Mixed Signal Oscilloscope
The 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. Its sleek, 1.5-inch compact appearance, touch-enabled screen and upgradeable.....
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/afg31000-project-lab.png)

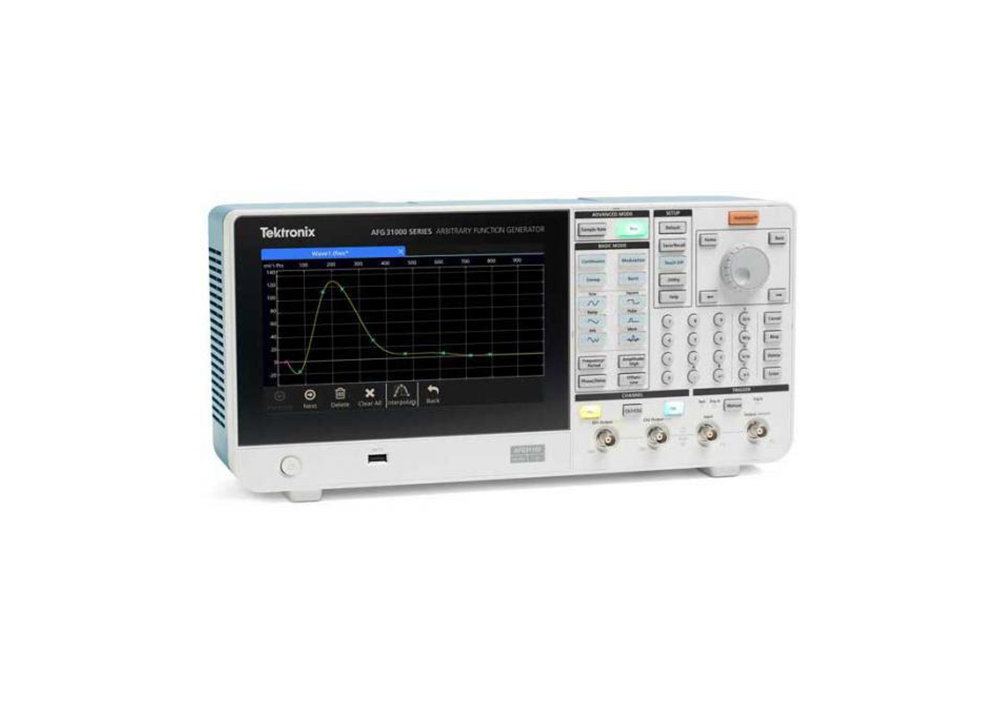

Tektronix AFG31000 Arbitrary Function Generator
The AFG31102 is a high-performance AFG with built-in arbitrary waveform generation, real-time waveform monitoring, and the largest touchscreen on the market.....
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/dmm6500-project-lab.png)

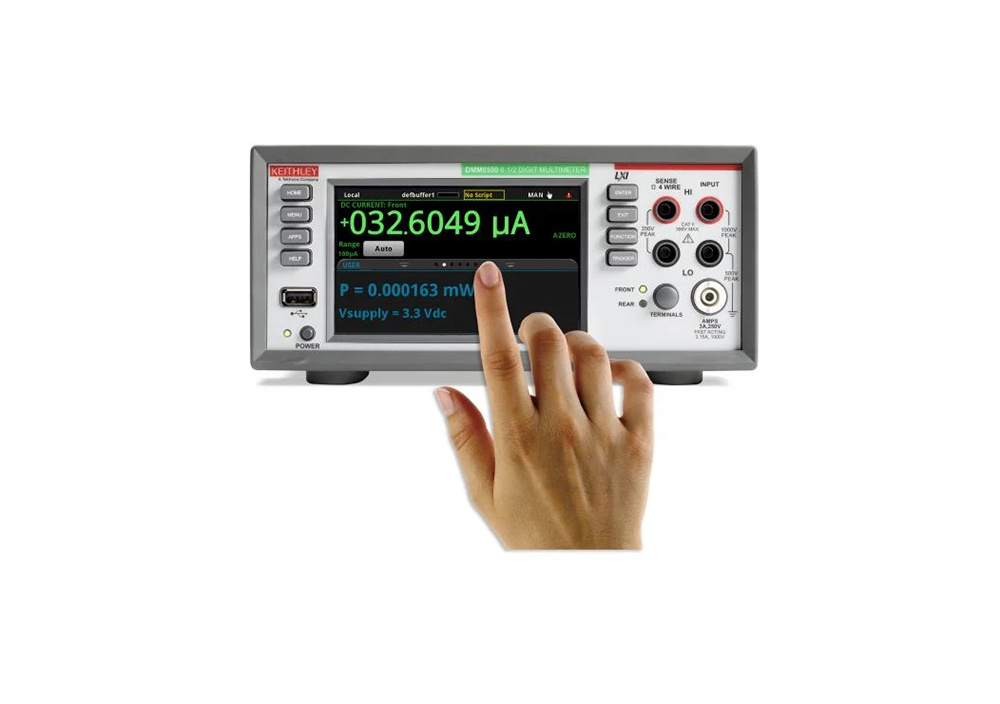

Keithley DMM6500 digital multi meter
A touchscreen bench/production test DMM with more measurement capability - including transient capture, data visualization, and analysis.....
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/2231a-30-3-project-lab.png)

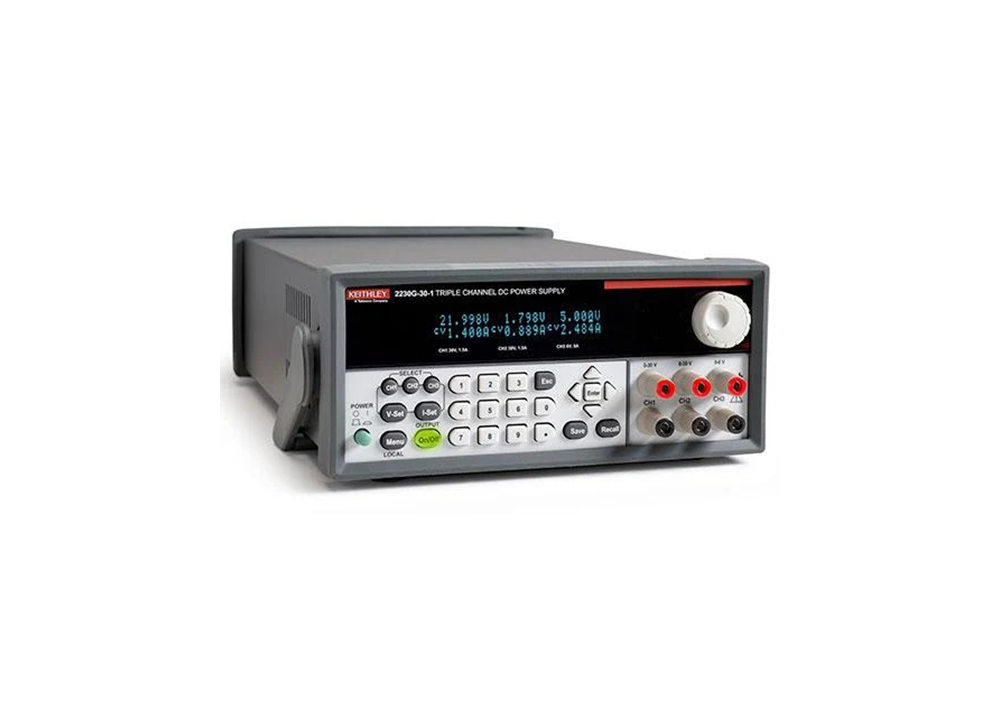

Keithley 2231A-30-3 3 Channel Power Supply
The Models 2220, 2220G, 2230, and 2230G Multi-Channel Programmable DC Power Supplies combine two and three channels of output power to cost-effectively....
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/rsa306b-projects-lab.png)

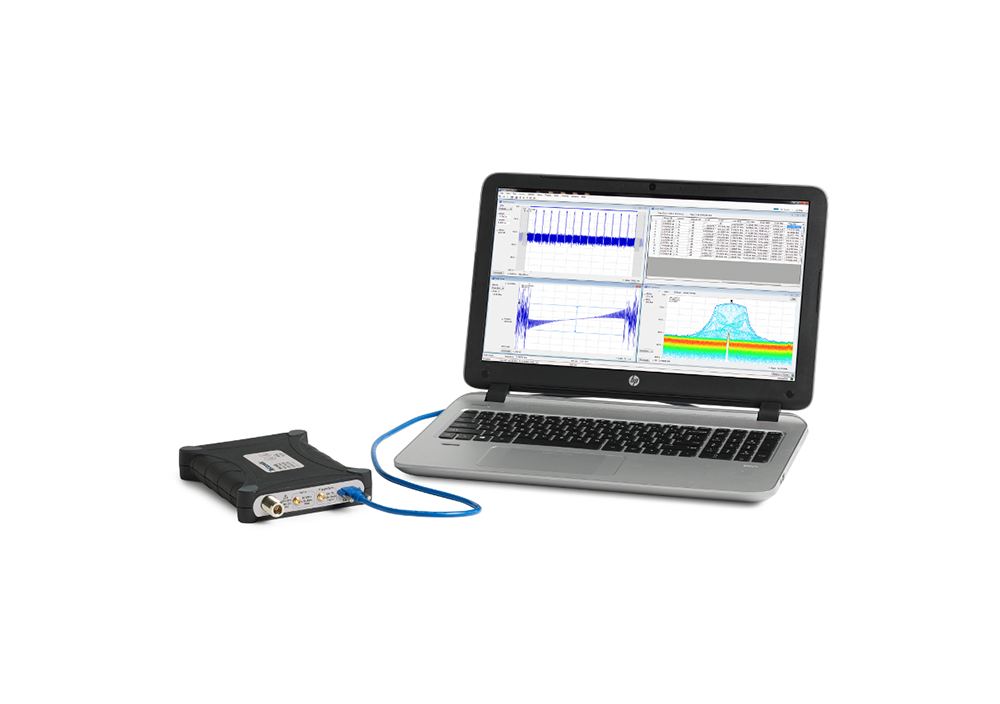

Tektronix RSA306B USB spectrum analyser with Signal Vu software
The RSA306B USB spectrum analyser might be small but it packs a big punch. It’s loaded with features you’d.....
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/apsinx010-project-lab.png)
Anapico APSINX010 RF signal generator
The APSIN RF models comprises a set of very compact, portable analog signal generator models up to 6100 MHz. A combination of good signal purity....
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/keithley-2400-project-lab.png)
Keithley 2400 Source Measure Unit
For over 25 years , the Model 2400 has been used in research and development labs and on production lines around the world....
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/keithley-2281s-20-6.png)
Keithley 2281-20-6 Battery Simulator/DC Power Supply
The 2281S-20-6 Dynamic Battery Simulator uses a model to emulate the response of a battery over its discharge cycle....
Keysight Project Lab Bench
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/general%20page%20images/rule-orange-150x6.jpg)
Manufacturer
Product
Description
Keysight
InfiniiVison 3000T X-Series Oscilloscope
200 MHz, 4 Analog + 16 Digital Channels
Keysight
33622A Waveform Generator
120 MHz, 2 Channel
Keysight
EDU36311A DC Power Supply
Combine Triple Outputs with Powerful Software for Deeper Insights
Keysight
34465A Digital Multimeter
6 ½ Digit, Truevolt DMM
Keysight
N9310A RF Signal Generator
9 kHz - 3 GHz
Keysight
N9322C Basic Spectrum Analyser (BSA)
9 kHz - 7 GHz
Keysight
B2901B Precision Source/Measure Unit
1 ch, 100 fA Resolution, 210 V, 3 A DC / 10.5 A Pulse
Project Bench Featured Products
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/general%20page%20images/rule-orange-150x6.jpg)
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/keysight-infiniivison-3000t-x-series-oscilloscope.png)

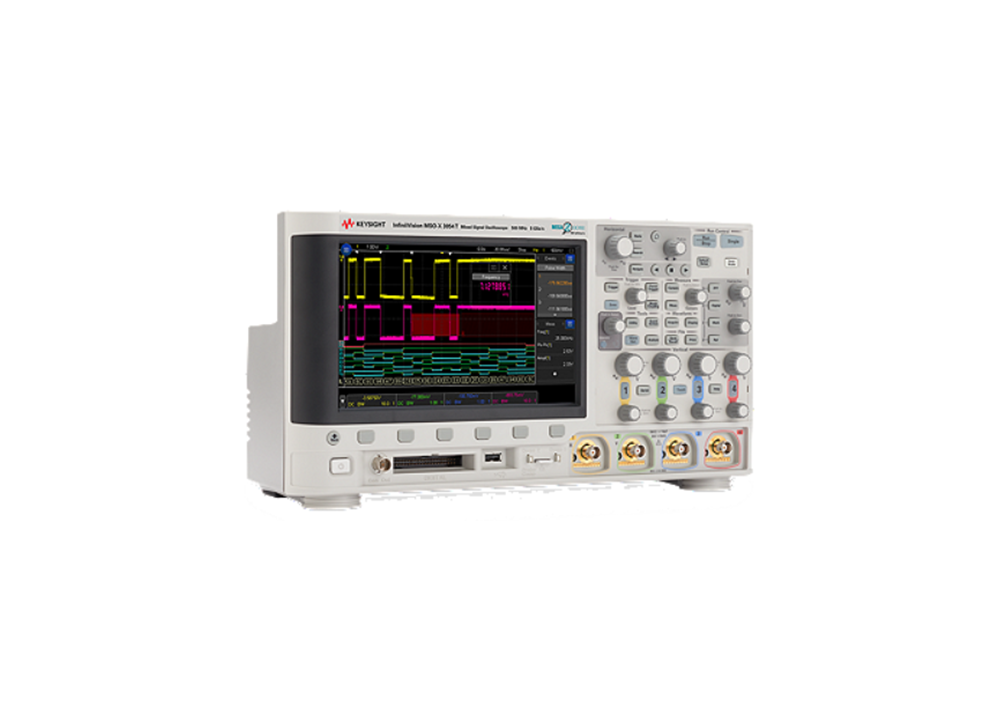

Keysight InfiniiVison 3000T X-Series Oscilloscope
Keysight InfiniiVision 3000T X-Series oscilloscopes offer our high-end technology in a smaller form factor, with an extremely intuitive touch user interface.
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/keysight-33622a-waveform-generator-education.png)

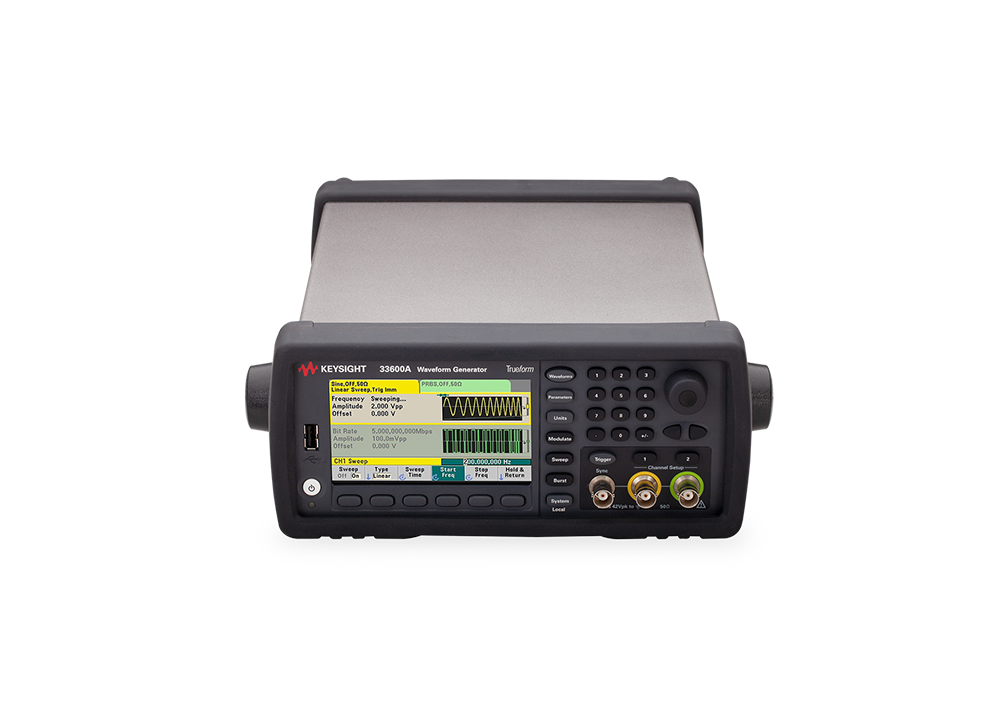

Keysight 33622A Waveform Generator
Keysight's exclusive Trueform technology gives you the confidence to produce the exact waveforms you need with best-in-class signal fidelity...
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/edux1052a.png)
Keysight EDU36311A DC Power Supply
The EDU36311A triple-output power supply has a compact design to fit anywhere on your bench. Monitor all your outputs simultaneously from any angle with its 7-inch color display.
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/keysight-34465a-digital-multimeter-education-page.png)

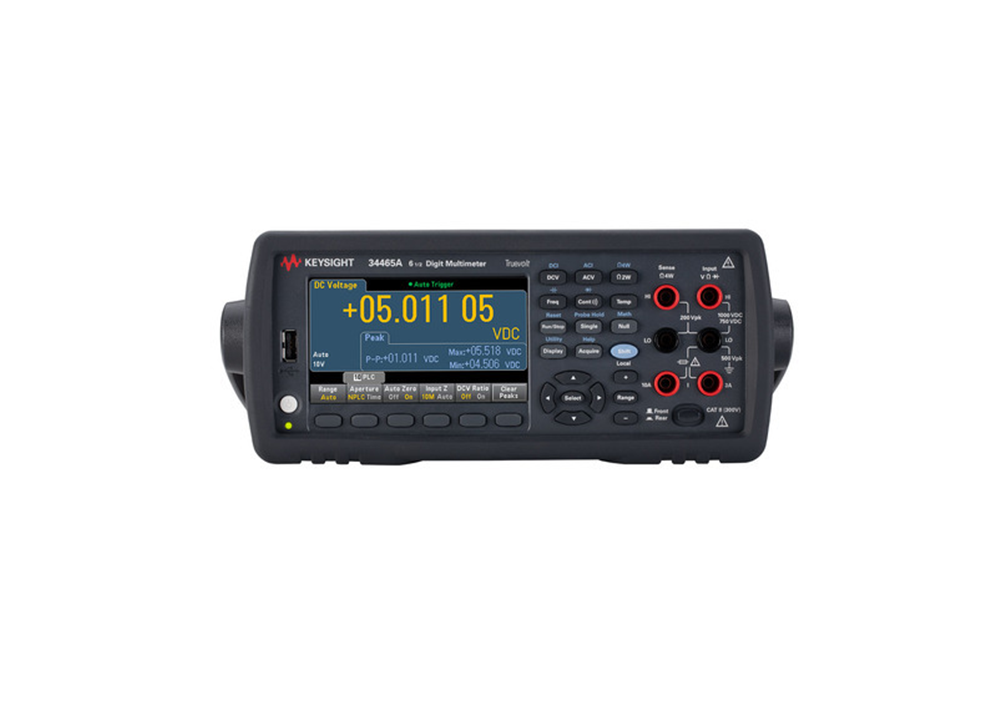

Keysight 34465A Digital Multimeter
Truevolt DMM's graphical capabilities such as trend and histogram charts offer more insights quickly. Data logging mode provides easier trend analysis and a digitizing mode for capturing transients.
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/n9310a-rf-signal-generator.png)
Keysight N9310A RF Signal Generator
The N9310A is a general purpose RF signal generator with a full sweep function, from 9 kHz to 3 GHz. Get reliable RF signal generation at an affordable price.
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/keysight-n9322c-basic-spectrum-analyser-education-page.png)

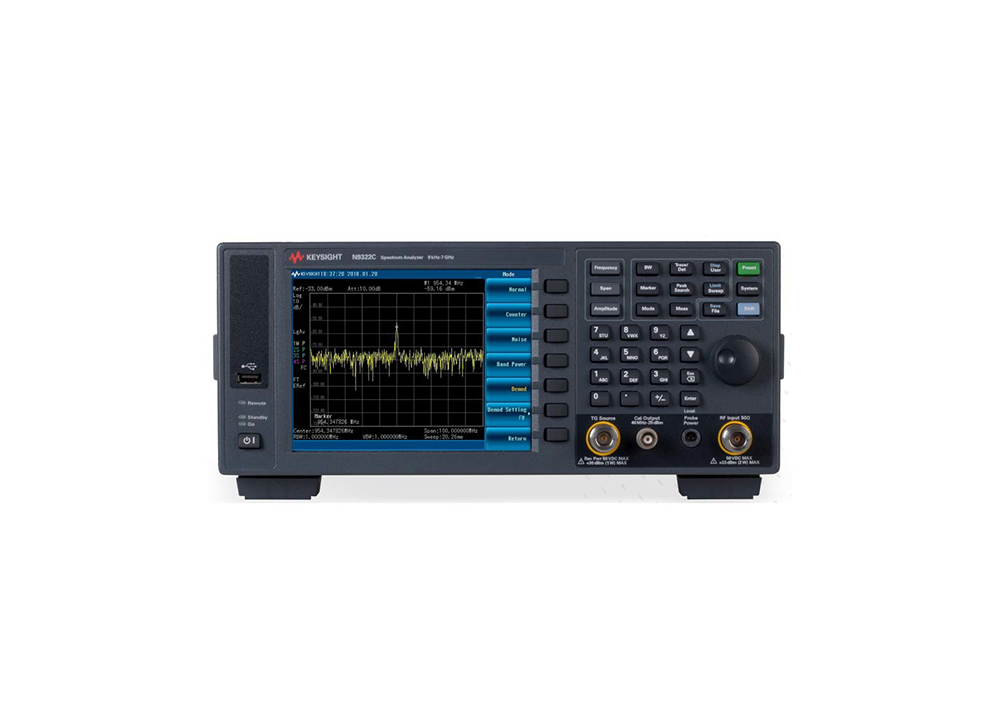

Keysight N9322C Basic Spectrum Analyser (BSA)
The N9322C Basic Spectrum Analyzer is a value-priced, channel power measurement spectrum analyser with general-purpose functionality for the 9 kHz to 7 GHz frequency range.
![](https://d3mzggmzridrkw.cloudfront.net/userfiles/testequity-uk/education/b2901b-precision-source-measure-unit.png)

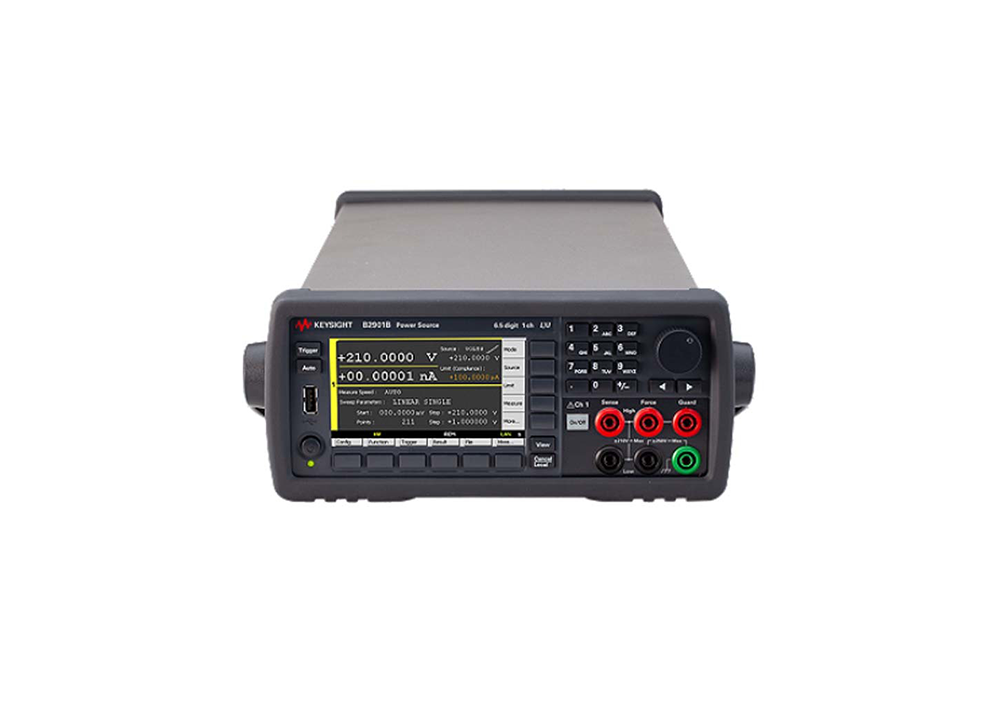

B2901B Precision Source/Measure Unit
The Keysight B2900 Series precision source measure unit (SMU) provides superior performance and usability at a reasonable price.
