Fluke 77 IV (FLUKE-77-4) Digital Multimeter

Features and Specifications

• Wide 1000 V measurement range

• Average responding AC measurements

• 0.3% accuracy

• 10 Amps continuous (20A for 30 seconds)

• Frequency and capacitance

• Resistance and continuity

• Large display

• Backlight for work in dim areas

• Min / Max to record signal fluctuations

• Ergonomic overmolded housing with integrated probe holders

• Free your hands with the optional TPAK magnetic hanger

• Auto and Manual ranging

• Meets 1000 V CAT III and IV 600 V safety standards

Versatile Multimeter for Field Service or Bench Repair

Fluke 77IV digital multimeter (DMM) has the features needed to repair most electrical and electronic problems. This meter is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.

DISPLAY:

1. Continuity test

2. Diode test

3. Negative readings

4. Unsafe voltage: Voltage ≥ 30 V, or voltage overload (OL)

5. AutoHOLD is enabled

6. MIN MAX AVG enabled

7. nμ F, mVA, Mke, kHz: Measurement units

8. DC, AC: Direct current, alternating current

9. Low battery. Replace battery

10. 610000mV: All possible ranges

11. Bar graph Analog display

12. Auto Range / Manual Range

13. Bar graph polarity

14. The input out of range

15. Test lead alert

PORTS:

1. Input terminal for AC and DC milliamp measurements to 400 mA

2. Input terminal for AC and DC current measurements to 10 A

3. Input terminal for voltage, continuity, resistance, diode test, capacitance, and frequency measurements

4. Common (return) terminal for all measurements

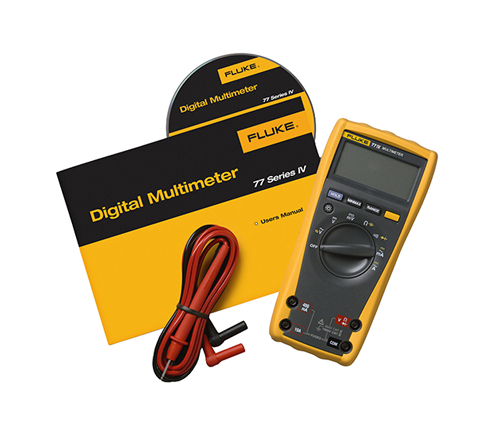

What's in the Box

• FLUKE-77-4 Digital Multimeter

• Installed 9V battery

• Test leads

• Users manual
