Keysight N2891A High-Voltage Differential Probe, 70 MHz, 7 kV, 100:1/1000:1

Part #18986.1

MFG #N2891A

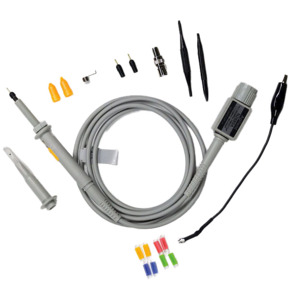

Keysight N2891A
Keysight
Keysight

Keysight N2891A High-Voltage Differential Probe, 70 MHz, 7 kV, 100:1/1000:1

Part #18986.1

MFG #N2891A

POA(Excl. VAT)

  • 70 MHz bandwidth
  • User-selectable attenuation settings of 100:1 or 1000:1
  • Rated to measure differential and common mode voltage up to ±7000 V at 1000:1 mode
  • Powered by included 4x AA batteries or USB host port of scope or PC
  • Compatible with any oscilloscope with 1 MΩ BNC input
  • Includes: Two safety hook tips and two high-voltage alligator clips

Use the N2891A 70 MHz high-voltage differential probe to make safe and accurate floating measurements with an oscilloscope. The N2891A differential probe allows conventional earth-grounded Keysight oscilloscopes to be used for floating signal measurements of up to ±7000 V of differential and common mode voltage.

The probe is compatible with any oscilloscope with 1 MΩ BNC input. The probe power is supplied by included 4x AA batteries or USB host port of the scope or PC via a supplied USB power cable.


BrandKeysight
Bandwidth70 MHz
Attenuation100X, 1000X
Input Capacitance5 pF
Max Input Voltage5000 V
Input Impedance100 MΩ
InterfaceBNC
Operating Temperature Range-10 to 40°C
Quote RequiredNo
Risetime5 ns
TypeDifferential Probe
UK SKU #N|KEY|25638
