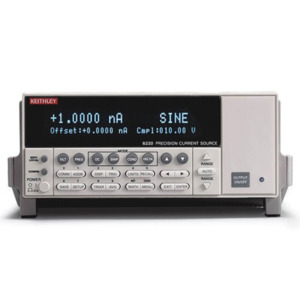

Keithley 6220 Precision AC and DC Current Source, Low Noise, 105 V, 100 mA, 11 W, 6200 Series

Part #19201.1

MFG #6220

Keithley 6220
Keithley
Keithley

Keithley 6220 Precision AC and DC Current Source, Low Noise, 105 V, 100 mA, 11 W, 6200 Series

Part #19201.1

MFG #6220

£6,570.00(Excl. VAT)

  • Source and sink (programmable load) 100fA to 100mA
  • 1014Ω output impedance ensures stable current sourcing into variable loads
  • 65,000-point source memory allows executing comprehensive test current sweeps directly from the current source
  • Built-in RS-232, GPIB, Trigger Link, and digital I/O interfaces
  • Reconfigurable triax output simplifies matching the application's guarding requirements
  • Model 220 emulation mode eliminates need to reprogram existing applications

The Model 6220 DC Current Source combines ease of use with exceptionally low current noise. Low current sourcing is critical to applications in test environments ranging from R&D to production, especially in the semiconductor, nanotechnology, and superconductor industries. High sourcing accuracy and built-in control functions make the Models 6220 ideal for applications like Hall measurements, resistance measurements using delta mode, pulsed measurements, and differential conductance measurements.

Includes:

  • 237-ALG-2 6.6 ft (2m), Low Noise, Input Cable with Triax-to-Alligator Clips
  • 8501-2 6.6 ft (2m) Trigger Link Cable to connect 622x to 2182A
  • CA-351 Communication Cable between 2182A and 622x
  • CS-1195-2 Safety Interlock Connector
  • Instruction manual on CD
  • Getting Started manual (hardcopy)
  • Software (downloadable).

BrandKeithley
Series6200 Series
Bandwidth1 MHz
Dimensions4.12 x 9.37 x 14.56"
InterfaceRS-232, GPIB, Trigger link
Maximum Current100 mA
Maximum Frequency100 kHz
Maximum Power11 W
Maximum Voltage105 V
Minimum Frequency1 MHz
Number of Channels4 Channels
Operating Temperature Range0-50°C
Quote RequiredNo
Relative Humidity Range0-70%
Resistance100 MΩ
Special FeaturesInternal waveform generator
Storage65000 readings
Warranty1 Year
£6,570.00(Excl. VAT)
