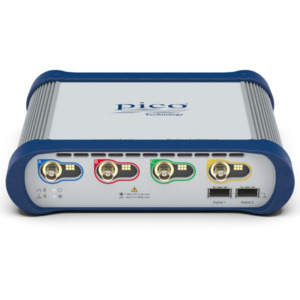

PQ308 (6405E) PC USB Oscilloscope

Specs:

• 750 MHz Bandwidth (–3 dB)
• 4 Analog channels
• Rise time < 475 ps 50ohms / < 850 ps Megohm
• Selectable bandwidth limit 20 MHz, 200 MHz
• Vertical resolution 8 bits
• 2 Memory (GS)
• Input connector BNC(f), x10 probe readout-pin compatible

Oscilloscope Kit:

• PicoScope 6000E Series PC oscilloscope
• P2056 500 MHz 10:1 passive probes (4)
• User’s Guide
• 12 V power adaptor, universal input
• Localized IEC mains lead
• USB cable 1.8 m
• Storage/carry case

PicoScope 6000E Series Ocilloscopes Overview

The PicoScope 6000E Series fixed-resolution and FlexRes oscilloscopes provide 8 to 12 bits of vertical resolution, with up to 1 GHz bandwidth and 5 GS/s sampling rate. Models with four or eight analog channels have the timing and amplitude resolution you need to reveal critical signal integrity issues such as timing errors, glitches, dropouts, crosstalk and metastability issues.

These oscilloscopes are ideal for design engineers working with high-performance embedded systems, signal processing, power electronics, mechatronics and automotive designs, and for researchers and scientists working on multi-channel high-performance experiments in physics labs, particle accelerators and similar facilities.

• Deep-memory, high-performance oscilloscopes and MSOs
• Up to 1 GHz bandwidth
• 8-bit to 12-bit FlexRes ADC
• Supports up to 16 digital MSO channels
• 200 ms capture time at 5 GS/s
• Up to 4 GS capture memory
• 50 MHz 200 MS/s 14-bit AWG
• 300,000 waveforms per second update rate
• PicoScope, PicoLog and PicoSDK software included
• 21 serial protocol decoder / analyzers included
• Mask limit testing and user-definable alarms
• High-resolution time-stamping of waveforms
• Over ten million DeepMeasure results per acquisition
• Advanced triggers: edge, window, pulse width, window pulse width, level dropout, window dropout, interval, runt and logic
