SKS Hirschmann Test & Measurement

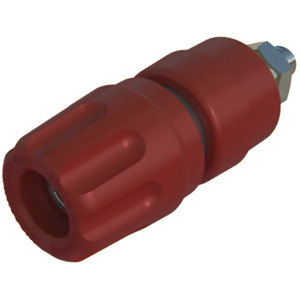

SKS Hirschmann Test & Measurement PKI 10 A rot / red Test Socket, Red, 2mm Cross Hole, M4 Thread, 35A
Part #NS04 930103101
MFG #PKI 10 A rot / red
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement PKI 10 A rot / red Test Socket, Red, 2mm Cross Hole, M4 Thread, 35A
Part #NS04 930103101
MFG #PKI 10 A rot / red
£
£
Multiples of: 100
- Description
- Attributes
- Documents
Pole terminal with claw edge and captive insulated head and insulated ring. 4 mm diameter nickel-plated brass threaded bolt with 2 mm diameter transverse hole. For insulated, non-rotating installation in equipment chassis and switchpanels with a wall thickness up to 2 mm.
Brand: SKS Hirschmann Test & Measurement
Type: Test Socket
Series: PKI Series
Alternate Product Number: 930103101
AC Voltage: 30 V
Color: Red
Connection: M4 Thread
Current Rating: 35 A
DC Voltage: 60 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Nickel Plated
Temperature Range: -25 to +100°C
Terminal Type: Binding Post
US SKU #: 10121760
Voltage Rating: 60 V
£
£
Multiples of: 100
