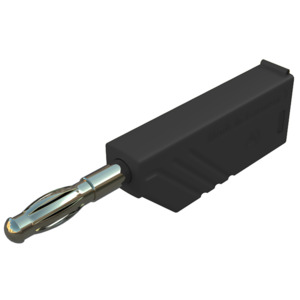

SKS Hirschmann Test & Measurement LAS N WS schwarz / black Au Banana Plug, LAS N WS Au , Black, 4mm Plug, 24A

Part #NS04 934100700

MFG #LAS N WS schwarz / black Au

SKS Hirschmann Test & Measurement LAS N WS schwarz / black Au
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement

SKS Hirschmann Test & Measurement LAS N WS schwarz / black Au Banana Plug, LAS N WS Au , Black, 4mm Plug, 24A

Part #NS04 934100700

MFG #LAS N WS schwarz / black Au

£
£
Multiples of: 50

Connector for tower construction with screw connection for leads from 0.5 mm² to 1.5 mm², outer diameter of lead max. 4.2 mm. Plug 4 mm with gold-plated caged spring, not contact-protected. Simple assembly by Click-System.

List of compatible systems und Product groups:

  • 4 mm system / Clamp-type test probe
  • 4 mm system / Test probes
  • 4 mm system / Crocodile clips
  • 4 mm system / Sockets
  • 4 mm sliding sleeve system / Clamp-type test probe
  • 4 mm sliding sleeve system / Test probes
  • 4 mm safety system / Clamp-type test probe
  • 4 mm safety system / Test probes
  • 4 mm safety system / Crocodile clips
  • 4 mm safety system / Sockets

Brand: SKS Hirschmann Test & Measurement
Type: Banana Plug
Series: LAS Series
Alternate Product Number: 934100700
AC Voltage: 30 V
Color: Black
Connection: Screw Terminal
Current Rating: 24 A
DC Voltage: 60 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Gold Plated
Pin Size: 4 mm
Style: Stackable
Temperature Range: -15 to +70°C
Terminal Type: Screw
US SKU #: 10117753
Voltage Rating: 30 V
£
£
Multiples of: 50
