SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SEB 2620 F6,3 grau / grey Test Socket, Gray, 4mm, Panel Mount, Tab, 32A
Part #NS04 972356106
MFG #SEB 2620 F6,3 grau / grey
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SEB 2620 F6,3 grau / grey Test Socket, Gray, 4mm, Panel Mount, Tab, 32A
Part #NS04 972356106
MFG #SEB 2620 F6,3 grau / grey
£
£
Multiples of: 50
- Description
- Attributes
- Documents

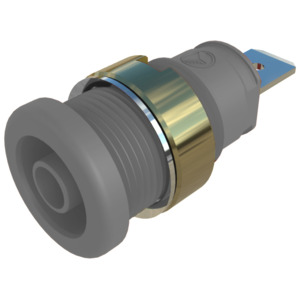

Safety built-in socket, 4 mm diameter, contact-protected, with 6.3 x 0.8 tab connector complying with DIN 46 244, gold-plated brass. For installation into switchpanels and equipment chassis with wall thicknesses up to 6 mm. Installation hole: 12.2 mm diameter, Tightening torque: 50 Ncm, Accessory: assembly tool MW SEB
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â SEB Series
Alternate Product Number:Â 972356106
AC Voltage:Â 1000 V
Color:Â Gray
Connection:Â Flat Connector 6.3 x 0.8 mm
Current Rating:Â 32 A
DC Voltage:Â 1000 V
Flammability Rating:Â V-2
Housing Material:Â PA
Material:Â Brass, Gold Plated
Measurement Rate:Â CAT III
Mounting Style:Â Panel Mount
Socket Size:Â 4 mm
Temperature Range: -40 to +80°C
Terminal Type:Â Tab
US SKU #:Â 10117790
Voltage Rating:Â 1000 V
£
£
Multiples of: 50
