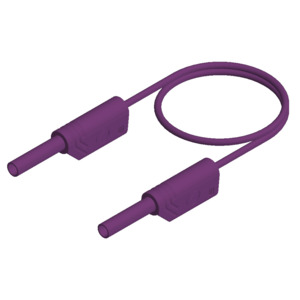

SKS Hirschmann Test & Measurement MVL S WS 50/1 Au violett / violet Banana Plug, Purple, Gold Plated, 2mm, 20" Length

Part #NS04 975695709

MFG #MVL S WS 50/1 Au violett / violet

SKS Hirschmann Test & Measurement MVL S WS 50/1 Au violett / violet
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement

SKS Hirschmann Test & Measurement MVL S WS 50/1 Au violett / violet Banana Plug, Purple, Gold Plated, 2mm, 20" Length

Part #NS04 975695709

MFG #MVL S WS 50/1 Au violett / violet

£
£
Multiples of: 25

Safety measuring lead, at either end 2 mm diameter safety connector / safety socket with onward connection capability. Gold-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. In accordance to IEC 61010 Standard. Built in indicator for easy identification of insulation damages.


Brand: SKS Hirschmann Test & Measurement
Series: MVL Series
Alternate Product Number: 975695709
AC Voltage: 1000 V
Cable Material: PVC
Color: Purple
Conductor Size: 1mm²
Current Rating: 10 A
DC Voltage: 1000 V
Flammability Rating: V-2
Housing Material: PA
Length: 20"
Material: Brass, Gold Plated
Measurement Rate: CAT III
Pin Size: 2 mm
Style: Banana
Temperature Range: -15 to +70°C
Type: Test Lead
US SKU #: 10115540
Voltage Rating: 1000 V
£
£
Multiples of: 25
